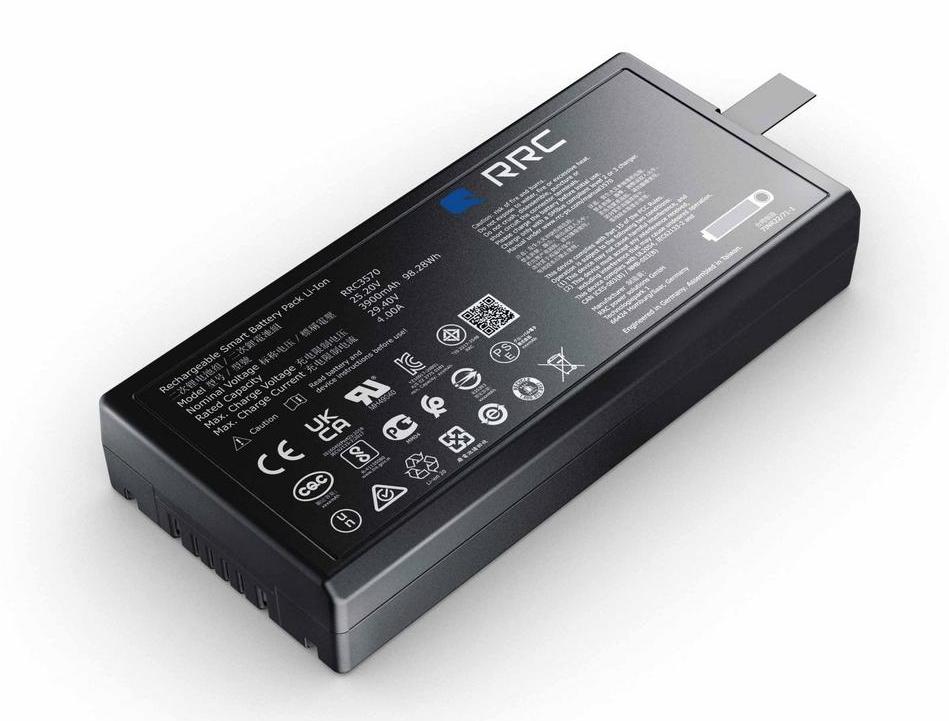

RRC3570 (7S1P) / 25.20V/ 3.90Ah/ 98.28Wh

Li-ion battery pack with 7 x 18650 Li-ion cells in a 2s2p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 3.9Ah, Discharge Current 30A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

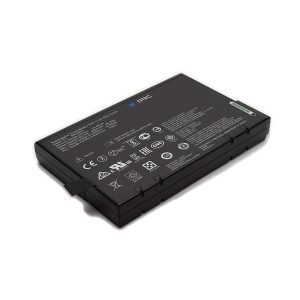

RRC2024 (4S3P) / 14.40V / 6.60Ah / 95.0Wh

Li-ion battery pack with 12 x 18650 Li-ion cells in a 4s3p cell orientation. SMBus & SBDS Rev 1.1 compliant. 6.6Ah. Discharge Current 10A. Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging. Maximized cycle life. Impedance tracking and cell balancing.

No manual recalibration is necessary.

Comprehensive charging/discharging and passive safety systems.

Worldwide approvals: CE ‏ UL2054‏ / UL1642‏ / IEC 62133  / EN60950 ‏/ UN3.8.3 ‏/ PSE ‏/RCM.

For more info click here

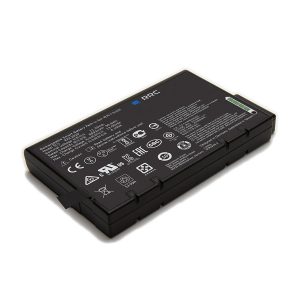

RRC2020 (3S3P) with 10.8V / 9.2Ah / 99.6Wh

Li-ion battery pack with 9 x 18650 Li-ion cells in a 3s3p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 8.85Ah, Discharge Current 10A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

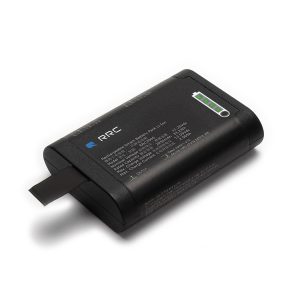

RRC2040 (3S1P) with 10.8V / 3.35Ah / 36.2Wh

Li-ion battery pack with 3 x 18650 Li-ion cells in a 3s1p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 2.95Ah, Discharge Current 3A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

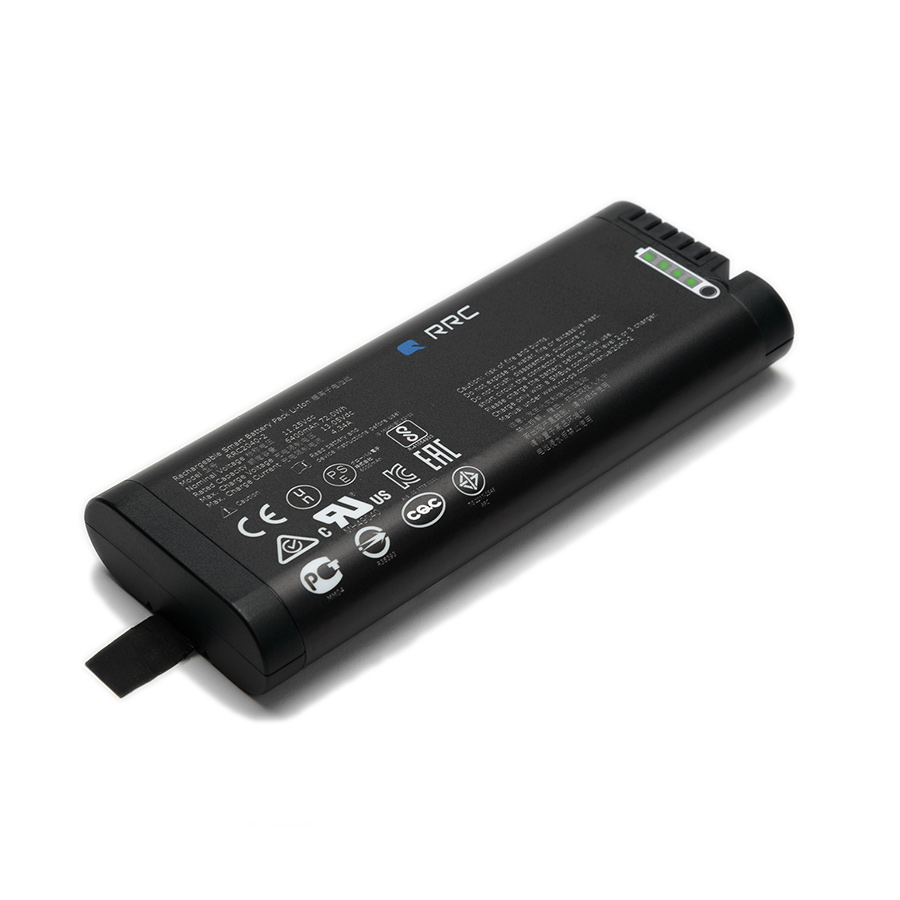

RRC2040-2 (3S2P) with 11.25V / 6.40Ah / 72.00Wh

Li-ion battery pack with 6 x 18650 Li-ion cells in a 3s2p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 6.40Ah, Discharge Current 6.5A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

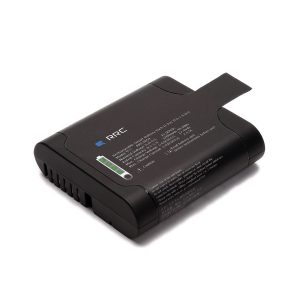

RRC2054 (4S1P) with 14.4V / 3.45Ah / 49.7Wh

Li-ion battery pack with 4 x 18650 Li-ion cells in a 4s1p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 3.2Ah, Discharge Current – 4A.
Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

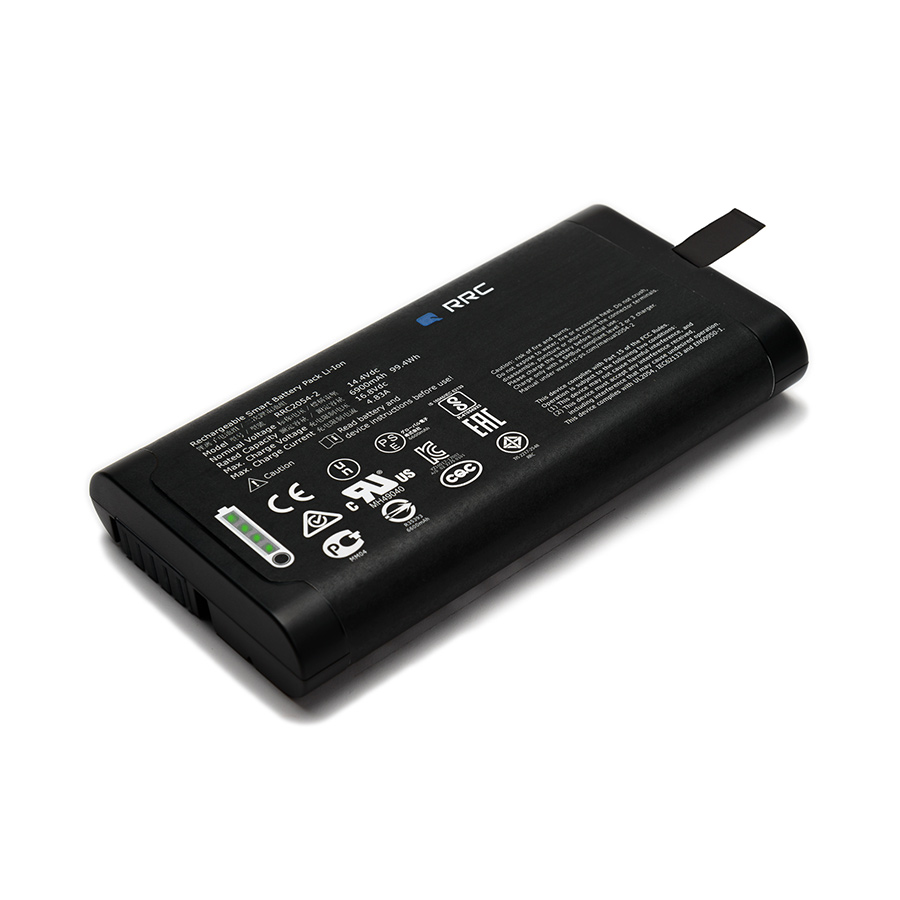

RRC2054-2 (4S2P) with 14.4V / 6.90Ah / 48.0Wh

Li-ion battery pack with 8 x 18650 Li-ion cells in a 4s2p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 3.2Ah, Discharge Current – 10A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

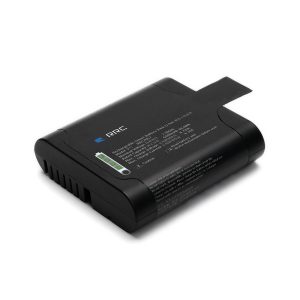

RRC2057 (2S2P) with 7.2V / 6.90Ah / 48.0Wh

Li-ion battery pack with 4 x 18650 Li-ion cells in a 2s2p cell orientation.

SMBus & SBDS Rev 1.1 compliant, 6.4Ah, Discharge Current 8A.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging, Maximized cycle life, Impedance tracking and cell balancing.

No manual recalibration is necessary.

Worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM

For more info click here

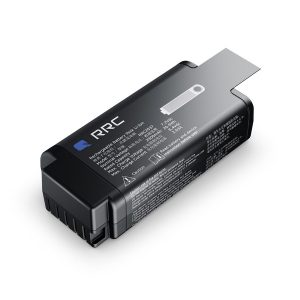

RRC2037 (2S1P) 7.20V / 2.90Ah / 20.90Wh

Li-ion battery pack with 2 x 18650 Li-ion cells in a 2S1P cell orientation. SMBus & SBDS Rev 1.1 compliant. 2.9Ah. Discharge Current 4.5A. Fulfills JEITA standards, advanced temperature-dependent charging profile.

Fastest charging. Maximized cycle life. Impedance tracking and cell balancing.

No manual recalibration is necessary. Comprehensive charging/discharging and passive safety systems.

Worldwide approvals: CE ‏ UL2054‏ / UL1642‏ / IEC 62133  / EN60950 ‏/ UN3.8.3 ‏/ PSE ‏/RCM

For more info click here

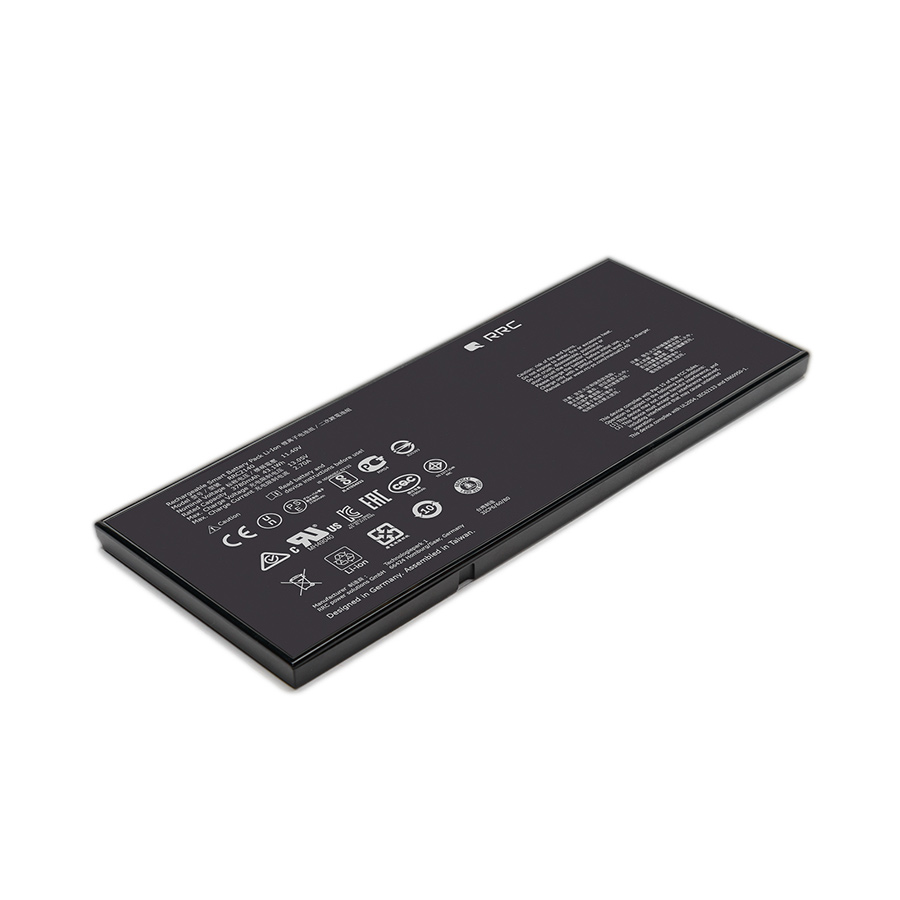

RRC2140 (3S1P) with 14.4V / 3.88Ah / 44.2Wh

Slim and flat standard battery pack with higher capacity and lower height than round cell packs with similar energy.

Allows developing smaller and thinner portable devices with long runtime, lower NRE costs and shorter time to market.

SMBus & SBDS Rev 1.1 compliant.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Impedance tracking and cell balancing.

Worldwide approvals.

Registered with recycling systems worldwide.

For more info click here

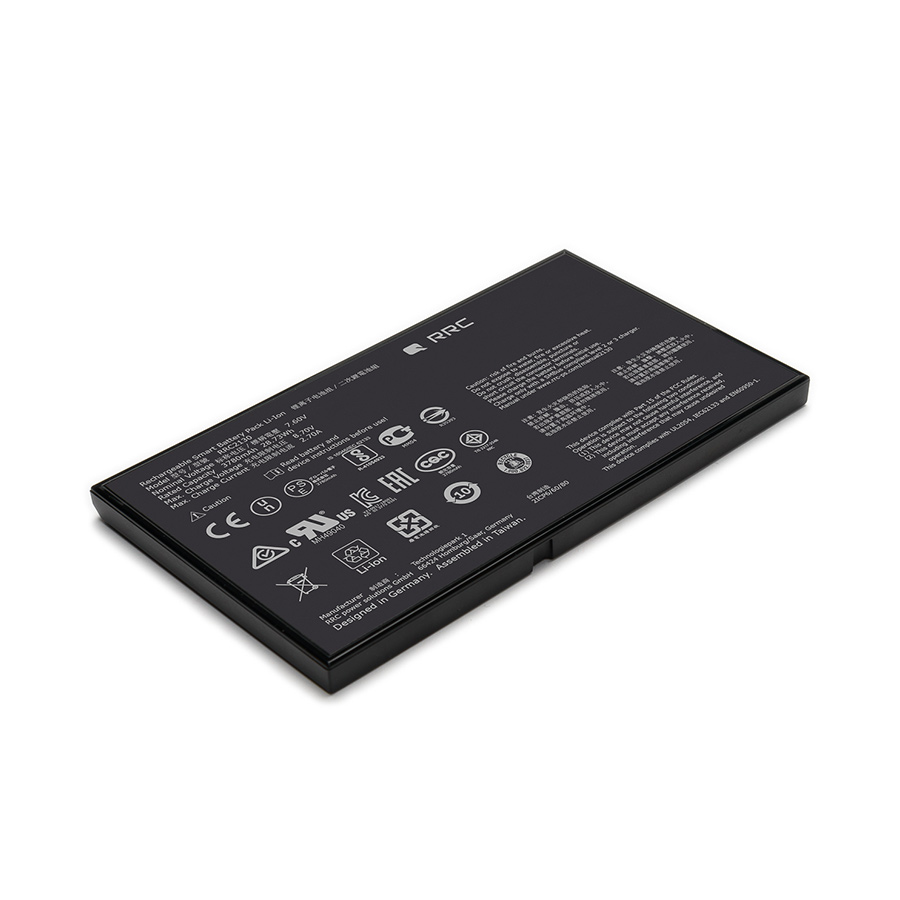

RRC2130 (2S1P) with 7.6V / 3.88Ah / 29.5Wh

Slim and flat standard battery pack with higher capacity and lower height than round cell packs with similar energy.

Allows developing smaller and thinner portable devices with long runtime, lower NRE costs and shorter time to market.

SMBus & SBDS Rev 1.1 compliant.

Fulfills JEITA standards, advanced temperature-dependent charging profile.

Impedance tracking and cell balancing.

Registered with recycling systems worldwide.

Worldwide approvals: CE / UN 38.3 / Gost / PSE / BSMI / TISI / RCM / EAC / CQC / UL2054 / KC / BIS / IEC 62133 / RoHS / FCC / REACH

For more info click here

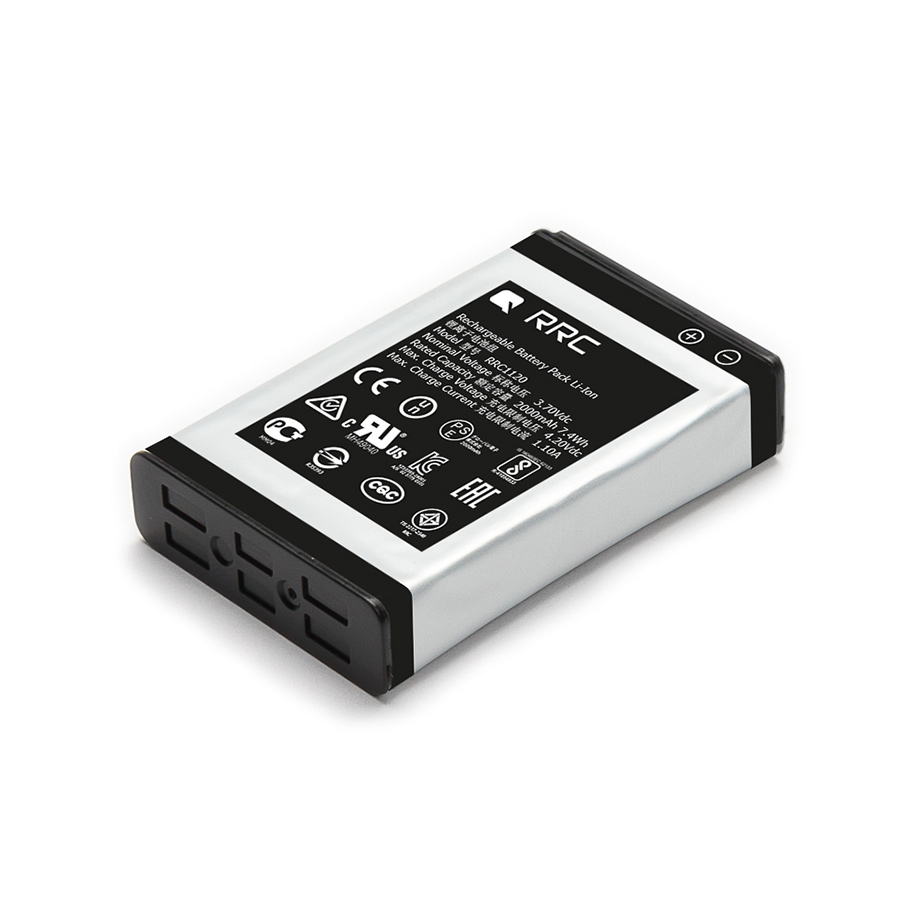

RRC1120 (1S1P) with 3.7V / 2.00Ah / 7.4Wh

Standard Li-ion semi-smart battery pack with 1 x 103450S cell in a 1s1p cell orientation.

Off-the-shelf single cell pack with high-energy density in a slim and compact design.

Allows developing smaller and lightweight portable devices with long runtime, lower NRE costs and shorter time-to-market.

For more info click here

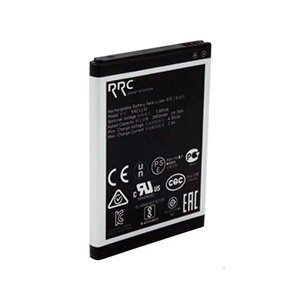

RRC1130 (1S1P) with 3.8V / 3.88Ah / 14.7Wh

Standard Li-ion semi-smart battery pack with 1 x 596080B cell in a 1s1p cell orientation.

Off-the-shelf single cell pack with high-energy density in a slim and compact design.

Allows developing smaller and lightweight portable devices with long runtime, lower NRE costs and shorter time-to-market.

For more info click here

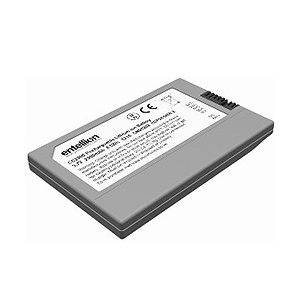

CC2300 / 3.7V / 2.30Ah / 8.5Wh

Li-ion rechargeable battery pack (SMBus) Credit card footprint (54.0mm x 85.6mm x 9.1 mm), 3.7V / 2.30Ah / 8.5Wh

Certification: ST/SG/AC.10.11 Rev5 (UN38.3 T1-T8 Tests), IEC62133:2002, EMC Directive 2004/108/EC

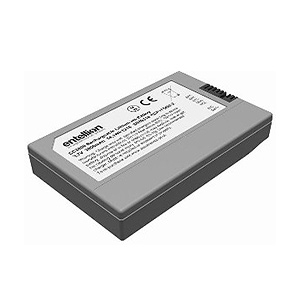

CC3800/ 3.7V / 3.80Ah / 14.1Wh

Li-ion rechargeable battery pack (SMBus) Credit card footprint (54.0mm x 85.6mm x 14.7 mm.

Certification:  ST/SG/AC.10.11 Rev5 (UN38.3 T1-T8 Tests), IEC62133:2002, EMC Directive 2004/108/EC

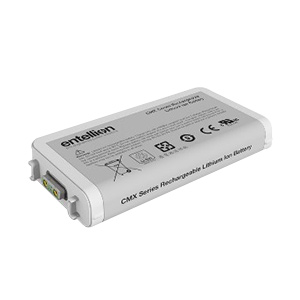

CMX series

The Entellion CMX series of smart batteries and chargers is designed specifically for medical OEMs, following extensive research and discussion with customers and hospitals.

CMX Series and chargers are available off-the-shelf or can be easily customized to meet a particular OEM requirement. Select from both 14.4V and 28.8V batteries, three mechanical formats and discharge capability up to 300W.

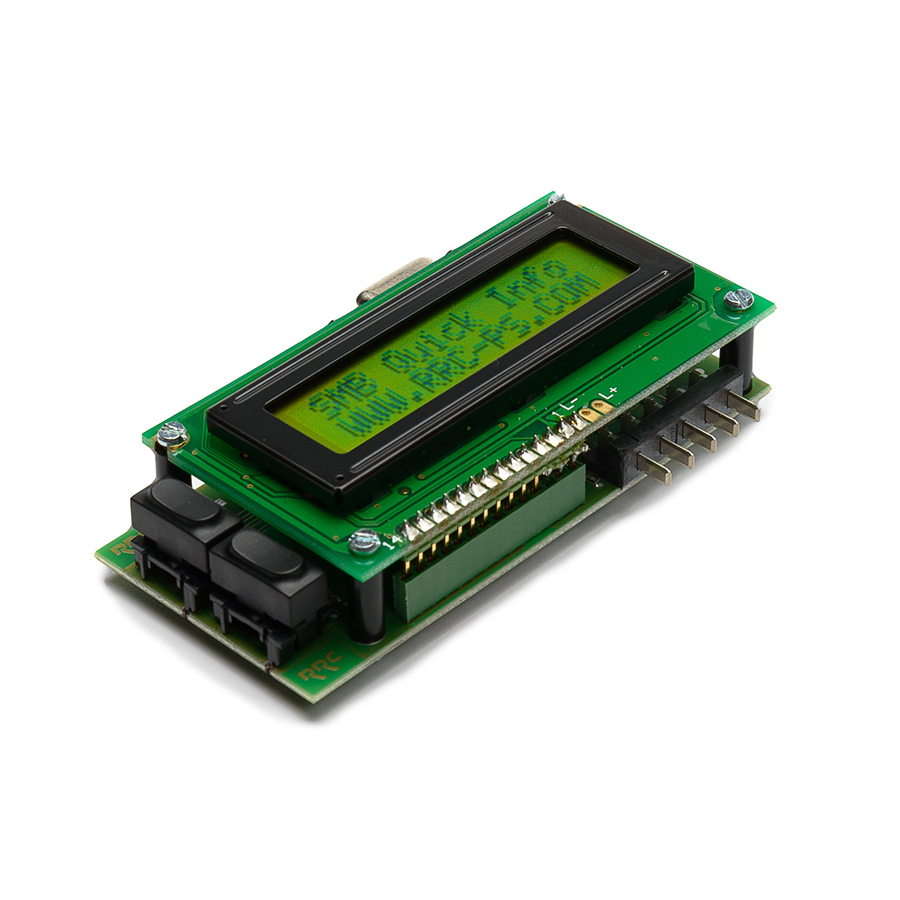

SMBus Reader

The ideal and essential SMBus battery diagnostic tool for development engineers.

Simple and easy readout of SMBus batteries.

Displays information direct from battery controlled by only two buttons.

No external PSU required.

Compatible with all SMBus batteries with 5 way blade connector.

All information displayed could be sent via standard RS232 interface to a connected host. Data Transfer – Standard RS232 Interface.

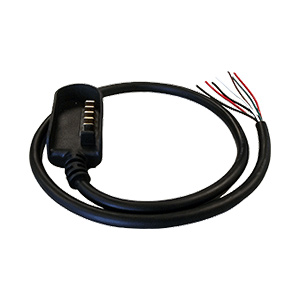

SMBus Battery Cable

Extension cable for battery applications. Suitable for use with RRC Standard Battery Packs RRC2040, RRC2040-2, RRC2054 and RRC2057.
