We offer standard and customized battery chargers for medical applications. As the Israeli representative of RRC Power Solutions, we provide single to multi-bay charging platforms applicable for all established cell chemistries (for example NiMH, Li-Ion) as well as PCB building blocks for OEM systems.
Your benefits at a glance:
- Off-the-shelf availability of chargers for all RRC standard battery packs
- Worldwide approvals and recognition of safety standards
- No NRE: no additional development, tooling, approvals or design costs
- Time-to-market: immediate product availability
- Chargers designed to work for smart batteries in the same form factor too
- Integrated state-of-charge indication using LED’s
- Design and production of customized charger solutions
RRC-SMB-MBC
50 Watts desktop battery charger for the standard battery form factors RRC2040, RRC2040-2, RRC2054, RRC2057 or compatible smart batteries with a similar footprint.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
CE / CB / cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS/ EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here
RRC-SMB-MBC-M
Medical Standard Battery Charger for SMBus compliant Batteries
Intelligent desktop battery charger with smart battery technology for standard batteries form-factors such as RRC2040, RRC2040-2, RRC2054, RRC2057, RRC2054-2, RRC2037 or compatible smart batteries with a similar footprint.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
Medical cULus, T-mark, EN/IEC60601-1 / FCC15 class B/CE / CB / PSE /cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS/ EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here
RRC-SMB-UBC
Intelligent desktop battery charger with smart battery technology for standard batteries form-factors such as RRC2020, RRC2040, RRC2024, RRC2040-2, RRC2054, RRC2057 or compatible smart batteries with a similar footprint.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
CE / CB / cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS/ EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here
RRC-SMB-UBC-M
Medical Standard Battery Charger for SMBus compliant Batteries
Intelligent desktop battery charger with smart battery technology for standard batteries form-factors such as RRC2024, RRC2020, RRC2040, RRC2040-2, RRC2054, RRC2057, RRC2054-2, RRC2037 or compatible smart batteries with a similar footprint.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
Medical cULus, T-mark, EN/IEC60601-1 / FCC15 class B/CE / CB / PSE /cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS/ EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here
RRC-SMB-DBC
Dual Bay Standard Battery Charger for SMBus compliant Batteries
Intelligent desktop battery charger with smart battery technology for standard batteries form-factors such as RRC2024, RRC2020, RRC2040, RRC2040-2, RRC2054, RRC2057, RRC2054-2, RRC2037 or compatible smart batteries with a similar footprint.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
CE / CB / cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS/ EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here
RRC-PMM240 Power Management Module
Power management and smart battery charging capability for medical and industrial applications. Wide DC input voltage range. Output power to battery max. 82 Watt
Output power to application max. 240 Watt trough Turbo-Boost-Mode.
Worldwide approvals include:
IEC60601-1(ed.3), IEC60601-1(ed.3);am1/ ANSI/AAMI ES60601-1:2005/(R)2012/ CAN/CSA-C22.2 NO. 60601-1:14
RRC-PMM20 Power Management Module
A Power Management Module designed for integration into any application utilizing RRC20xx batteries, the PMM20 allows for internal battery charging. It enables a smooth transition between mains and battery power, ensuring uninterrupted operation and dependable power backup within a compact and space-efficient design.
- Simple to incorporate into design, seamlessly integrates into slot configurations
- Embedded charging solution for RRC20XX standard battery packs with Plug & Play convenience
- Incorporates power management features
- Adheres fully to the Smart Battery Specification
- Holds Worldwide certifications for industrial and medical applications
- Offers configurability
Enables the parallel use of multiple PMMs within a single device, allowing for the combination of additional batteries.
RRC-SCC1120 / SCC1130
5 Watts desktop single bay battery charger for the standard battery RRC1120 and RRC1130 respectively.
Worldwide approvals include:
CE / CB / cULus/ RCM/ EAC/ KC/ CCC/ PSE/ BIS FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8
For more info regarding RRC-SCC1120 click here
For more info regarding RRC-SCC1130 click here
RRC-SMB-FPC
40W battery charger for RRC2130, RRC2140.
In combination with included external AC/DC power supply (PS65).
Worldwide approvals include:
CE / EN55011, EN55032, level B / FCC15, class B /EN/IEC61000-4-2 / EN/IEC61000-4-3 / EN/IEC61000-4-4/ EN/IEC61000-4-5/EN/IEC61000-4-6 / EN/IEC61000-4-8/ EN/IEC61000-4-11 / EN55024
For more info click here

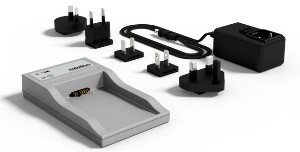

CX6100
The CX6100 is a slimline desktop charger for CC2300 and CC3800 credit card batteries. The CX6100 complements the range of Entellion credit card batteries and allows users to charge their batteries separately from their portable devices.
