The Vertiv™ VRC split rack cooling system offers adaptability and effectiveness for cooling IT Racks in small server rooms, Micro Data Centers, network closets, and edge computing.   With a compact design that provides up to 3800 watts of IT server cooling, the energy-efficient Vertiv VRC system addresses diverse cooling challenges, even in the most demanding small spaces.

Key Benefits

  • Consistently and effectively meets cooling needs for small room and edge applications, providing up to 3.8 kW per cabinet.
  • Utilizing a space-efficient design, it occupies a mere 6U, ensuring that precious floor and rack space remain unoccupied in small IT rooms.
  • Decreases energy usage and minimizes operational expenses by making real-time adjustments to cooling and capacity.
  • Provides versatile installation options, allowing mounting either at the top or bottom of standard racks.
  • Offers peace of mind and streamlined oversight through the ability to monitor at the unit level or remotely, enhancing ease of management.
  • 2 years standard warranty

Keeping You on Top of Rack Mount Cooling Performance

IT managers have the capability to track the status of the Vertiv VRC split cooling system either through the unit’s display or via remote access using the plug-in SNMP communication card or Modbus RTU. In case that cooling deviates from predefined thresholds, immediate notifications will be sent to the staff, empowering them to promptly take measures to safeguard valuable IT equipment.

Vertiv VRC Applications

  • The Vertiv™ VRC is designed for installation on either 2-post or 4-post racks.
  • It is adaptable for installation in either open or closed racks.

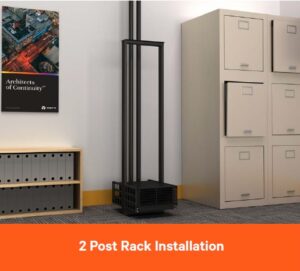

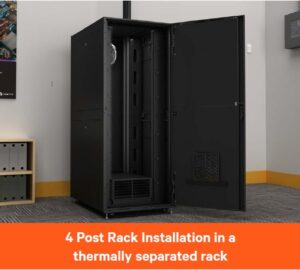

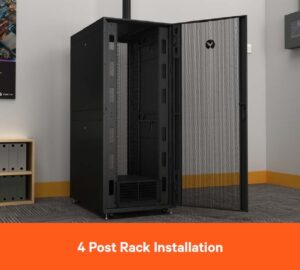

2 Post Rack Installation 4 Post Rack Installation in a thermally seperated rack 4 Post Rack Installation

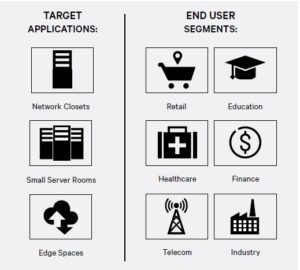

Target Applications End User Segments

Vertiv™ VRC Split Rack Cooling System Features

  • Rack-mounted indoor unit, utilizing only 6U of space. It is engineered to fit seamlessly at either the top or bottom of most of the standard 19-inch network racks.
  • Outdoor unit with compressor for heat rejection into the ambient air
  • Variable speed compressor and fans to align the cooling output with the specific load within the room
  • Add-on condensate pump to streamline the management of condensate.
  • Multiple monitoring options comprise an on-unit display, a plug-in SNMP card for remote monitoring over the network, and Modbus RTU for integration with the building management system.
  • Alarm notifications sent via email or SMS
  • Up to 30m piping length between indoor and outdoor unit
  • Vertical distance between indoor and outdoor unit from -5m to +15m



For more information, please watch the recorded presentation (in Hebrew) of Menni Hoffman, Channel Sales Manager, in which he introduced the system and its benefits:













Also, please watch Asaf Noy, our Service Manager, demonstrates why Vertiv VRC split rack cooling system is the ideal solution for Edge applications and small spaces:
