PANDUIT’s innovative wiring ducts deliver improved wire management and aesthetics for electrical control and communication panels.

DIN Rail Wiring Duct

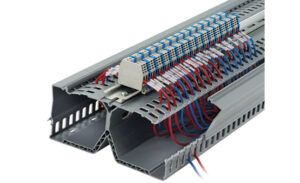

Panduit PanelMax™ DIN Rail Wiring Duct is an innovative wire management solution that maximizes space utilization within industrial enclosures for flexibility in panel layout and reduced material and installation costs. With DIN Rail ducts you can cut more than 30% of your panel footprint!

The unique design raises components from the panel surface for easier access and faster terminations. DIN rail wiring duct is compatible with common DIN rail and DIN mount components to satisfy a wide range of applications.

PanelMax™ DIN Rail Wiring Duct advantages:

  • Space-saving design
  • DIN rail and DIN component compatible
  • Integrated DIN rail fastening slot
  • Hinged and flexible covers
  • Slotted platform and sidewalls
  • Channel pass-through slots
  • Wire retainer accessory
  • Lead-free, UL compliant PVC material



















DIN Rail Wiring Duct Bulletin



Panduct® PanelMax™ Shielded Wiring Duct

  • Safeguards, directs, and isolates vulnerable wiring within data centers, control panels, and noisy surroundings.
  • Durable metallic foil provides shielding across the entire surface of the wire duct, leading to a reduction of 20dB in EMI/RFI and 90% in NVR, which in turn enhances the clarity of the signal significantly.
  • Offers the choice of a Noise Shield Kit that employs dividers to segregate wires sharing the same channel, guarding each wire bundle against extra interference produced by the wires themselves.
  • Substantially minimizes the required gap between clean and noisy signal pathways, thereby creating extra room for additional equipment.



















Panduit® PanelMax™ Noise Shield

  • Quiets disruptive data cables across various uses.
  • Employed either within Panduit wiring duct or installed independently, the PanelMax noise shield functions to isolate and safeguard vulnerable wiring against noise emissions.
  • Achieves noise reduction of up to 20 dB and a remarkable 90% reduction in noise voltage, even within a 6″ air space.
  • Constructed from zinc-plated steel, the noise shield features a black powder coating on its vertical surfaces for added durability and protection.



Shielded Wiring Duct and Noise Shield Product Bulletin



Panduct® PanelMax™ Corner Wiring Duct

The Panduct® PanelMax™ Corner Wiring Duct represents a groundbreaking single-component solution for organizing wires. It optimizes the available space within enclosures, expedites the installation process, and effectively cuts down the expenses associated with assembling control panels. Designed for application in the vertical corners of electrical control panels ranging from compact to sizable ones (comprising both side and back panels), the PanelMax™ Corner Wiring Duct serves the purpose of guiding, concealing, and safeguarding electrical wiring. It stands as an integral component within Panduit’s comprehensive range of wire management offerings tailored to meet the demands of control panels. Fits in the unused space in the vertical corner of enclosures and provides up to five square feet of additional sub-panel space for mounting control components or up to 20% savings in enclosure footprint area.

Panduct ® PanelMax& Corner Wiring Duct Product Bulletin



Panduct® Hal-Free Wide Slot Duct

The design of the Wide Slot Wiring Duct without halogens enhances its robustness and enabling accommodation for various wire and bundle sizes. It incorporates upper and lower scorelines to simplify the removal of finger/sidewall sections. The product boasts a UL 94 flame class rating of V-0 and holds recognition from UL for consistent use at temperatures up to 95°C (203°F). Composed of halogen-free Polyphenylene Oxide (PPO), it guarantees safety and reliability.



Panduit Flexible Wiring Duct System

The Flexible Wiring Duct is designed as a singular unit with slotted sidewalls and an open-finger design. It serves the purpose of guiding and safeguarding wires in situations demanding adaptability. Crafted from polypropylene material, it bears a light gray hue and is specifically intended to facilitate the addition or removal of wires post-termination, without the need for specialized tools
