Offer enhanced efficiency and worker protection for the tasks of bundling, fastening, and marking in challenging environments. When factors such as robustness, vibration resistance, exposure to radiation, weather impact, corrosion, and extreme temperatures are necessary, the Pan-Steel® System offers dependable and sturdy solutions.
Pan-Steel® System
- Dependable system functionality: Provides robustness, extended lifespan, and the ability to withstand chemicals, vibrations, radiation, weathering, and extreme temperatures.
- Enhanced workplace safety: Incorporates smooth edges to mitigate the risk of harm to installers and the potential damage to cable bundles or the final product.
- Optimized installation affordability: Encompasses trustworthy, user-friendly equipment and an inventive design for cable ties to ensure rapid and reliable installation.
- Efficient workplace identification: Presents the broadest array of customized marking products for on-site and factory use within the industry.
- Adherence to standards: Conforms to and surpasses the most stringent standards set by the industry.
Stainless Steel Cable Ties
Provides suggested products for common applications. It’s important to consistently validate the appropriateness of the product according to your distinct needs and crucial criteria for selection.
Retained Tension Ties
Panduit’s tension ties with retained tension offer a robust and reliable method for fastening mechanical components. This system boasts the industry’s utmost maintained tension, ensuring a secure fastening of rigid materials even in demanding environments with significant vibration.
Stainless Steel Strapping
Panduit’s stainless steel strapping, available in both coated and uncoated versions, presents the optimal answer for substantial mechanical applications. The design of the buckle and the tools used for installation ensure a speedy and secure installation process.
Aluminum Cable Ties
Panduit’s aluminum cable ties find application in the grouping and labeling of cables, as well as in fastening aluminum marker plates and tags onto cables and devices. These ties made of aluminum offer a lightweight and pliable method for bundling and providing enduring identification.
Permanent Identification
A comprehensive assortment of lasting labeling options is at your disposal, encompassing stainless steel and aluminum cable ties, marker plates, and tags of various dimensions and configurations. The factory also provides personalized marking services, offering identification through embossing or laser etching. For swift and uncomplicated on-site identification, the available marking tools prove to be exceptionally valuable.
Installation Tools
Panduit’s cable ties, in conjunction with cutting-edge installation tools, collaborate seamlessly to deliver consistent and top-tier results while keeping the cost of installation minimal. Ergonomic tools catering to different usage volumes – whether low, medium, or high – are at your disposal. Every tool is meticulously designed to ensure unwavering reliability.
Applications
Panduit offers a wide variety of metal cable bundling, mechanical fastening, and permanent identification solutions to meet your specific application requirements. Common applications include:

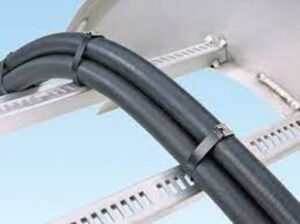

Cable Tray, Outdoor
Oil Rigs, Refineries
Description: Safeguarding electrical or communication cabling onto cable trays within harsh environment.
Criteria for Selection: Endurance against extreme temperatures, chemical exposure, salt-water impact, and ultraviolet radiation.
Product Recommendations:
- To secure cabling on horizontal stainless steel cable trays, opt for Uncoated Heavy 316 Stainless Steel Metal Locking Tie.
- For vertical stainless steel cable trays, utilize Uncoated Extra-Heavy 316 Stainless Steel Metal Locking Tie.
- When dealing with horizontal aluminum cable trays, deploy Coated Heavy 316 Stainless Steel Metal Locking Tie.
- For short circuit protection, up to 112kA, consider employing Metal Locking Ties or MS75 Metal Strapping.
Cable Tray, Indoor
Ships, Submarines, Chemical Plants, Industrial Facilities
Description: In harsh environment, secure electrical or communication cabling onto cable trays.
Selection Criteria: Prioritize resistance against extreme temperatures, chemical exposure, vibrations, and impacts.
Product Recommendations:
- To fasten cabling on horizontal stainless steel cable trays, select Uncoated Heavy 316 Stainless Steel Metal Locking Tie.
- For vertical stainless steel cable trays, opt for Uncoated Extra-Heavy 316 Stainless Steel Metal Locking Tie.
- When dealing with horizontal aluminum cable trays, employ Coated Heavy 316 Stainless Steel Metal Locking Tie.
- For short circuits up to 71.5kA, consider using Super-Heavy Double Loop 316 Stainless Steel Metal Locking Tie.
- For short circuit protection up to 112kA, either Metal Locking Ties or MS75 Metal Strapping are suitable choices.

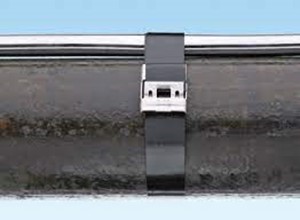

Instrument Tubing
Oil Rigs, Refineries, Chemical Plants, Industrial Facilities
Description: Secure instrument tubing onto pipes or rails in harsh environment.
Selection Criteria: Prioritize maintained tension and the ability to withstand extreme temperatures, chemicals, salt-water exposure, and ultra-violet radiation.
Product Recommendations: Consider using Coated 1/2″ Wide (12.7mm) 316 Stainless Steel Custom Length Strapping.
Pipe Insulation
Chemical Plants, Refineries, Industrial Facilities
Description: Fasten a metal shield onto pipe insulation securely.
Selection Criteria: Emphasize the capacity to withstand extreme temperatures, chemical exposure, and ultra-violet radiation.
Product Recommendations: • Consider utilizing Uncoated Extra-Heavy 15, 304 Stainless Steel Metal Locking Tie
Valve Identification
Industrial Facilities
Description: Fasten stainless steel or brass tags onto valves securely.
Selection Criteria: Prioritize resistance against extreme temperatures and ultra-violet radiation.
Product Recommendations: Consider using Brass Marker Tags and Standard 304 Stainless Steel Metal Locking Ties for this application.
General Mechanical
Sign and Signal Mounting
Description: Securely fasten signs onto outdoor poles.
Selection Criteria: Prioritize strong and dependable installation.
Product Recommendations: Consider utilizing the MS75 Strapping System.Top of Form
Telecommunications Backbone
Commercial Building
Description: Bundle fiber optic cabling onto an aluminum cable tray securely.
Selection Criteria: Emphasize strength, safeguarding the cables, and resilience against corrosion.
Product Recommendations: Consider using Coated Heavy 316 Stainless Steel Metal Locking Tie, applying it at the lowest tension setting, for this application.
