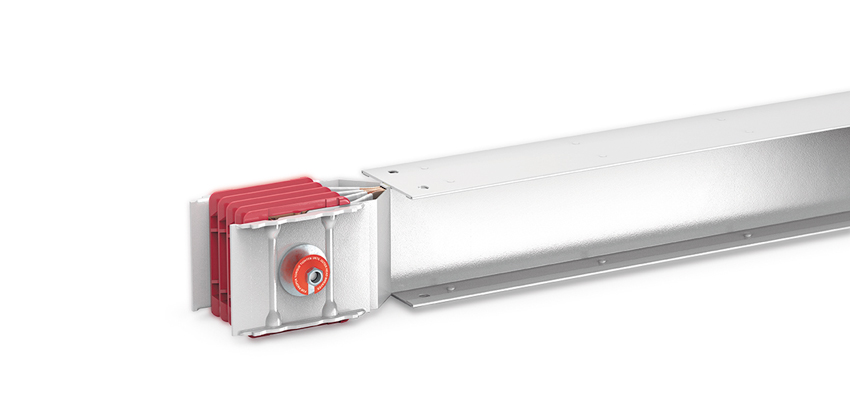

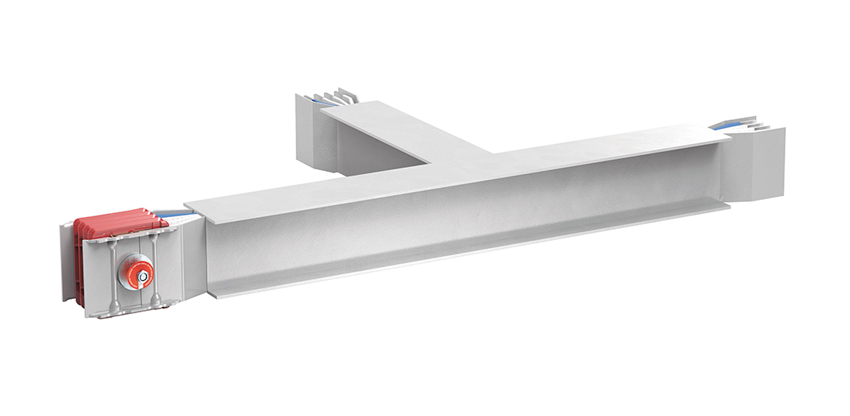

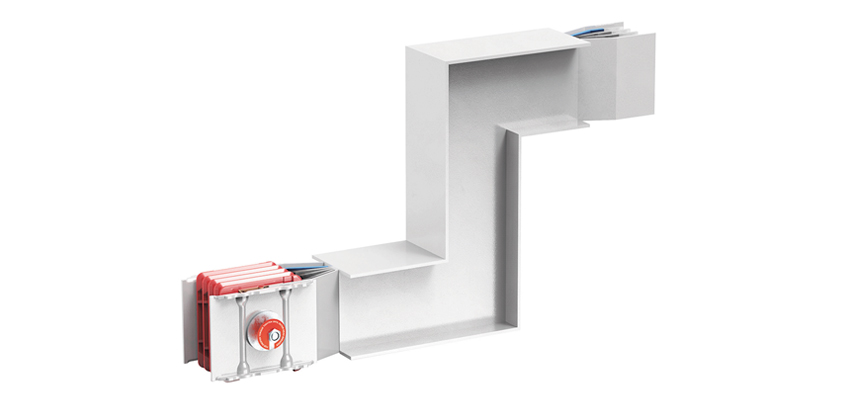

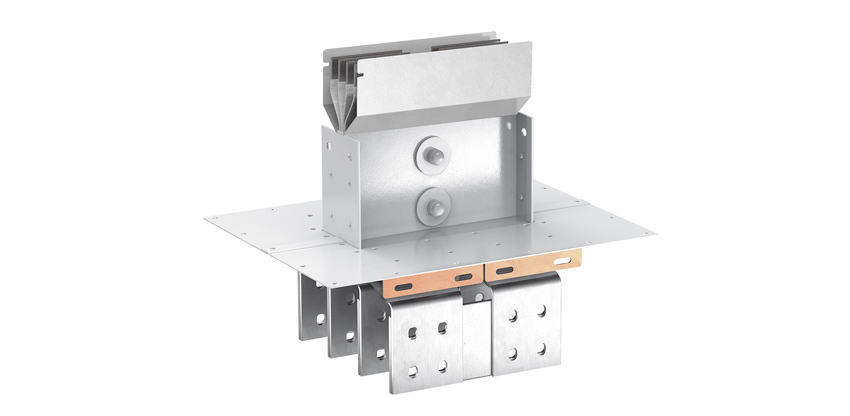

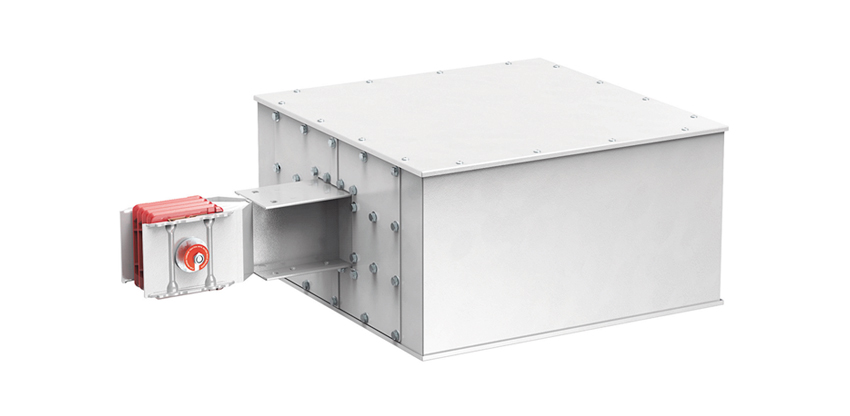

Starline new XCP High Power Busbars

Starline’s new Busbars provide mission-critical facilities with exceptional flexibility, performance, and safety for the most demanding critical power applications.

 Starline, a Legrand company and world leader in the development of customizable power distribution systems, unveiled the XCP High Power Busbar,  designed for transport and distribution of energy in data centers, multi-floor power distribution buildings, laboratories, industrial plants, commercial buildings and more.

Ranging from 630-6300 amps, the high-power busbar delivers up to an IP65 degree of protection.

Safety

Tested and manufactured in accordance with IEC 61439-1 & IEC 61439-6, the XCP product line is designed to provide the highest safety levels from all aspects of design and installation. Features such as fire and seismic resistance, high short-circuit ratings, excellent ingress protection along with superior insulation technology, help ensure that your critical operations team is always safe.

Performance

XCP provides reliability and cost-saving through its innovative design. A unique design using high-end materials and superior insulation technology, provides industry-leading ambient temperature ratings, low electrical losses, and negligible electromagnetic emissions, resulting in XCP’s world-class performance.

Flexibility

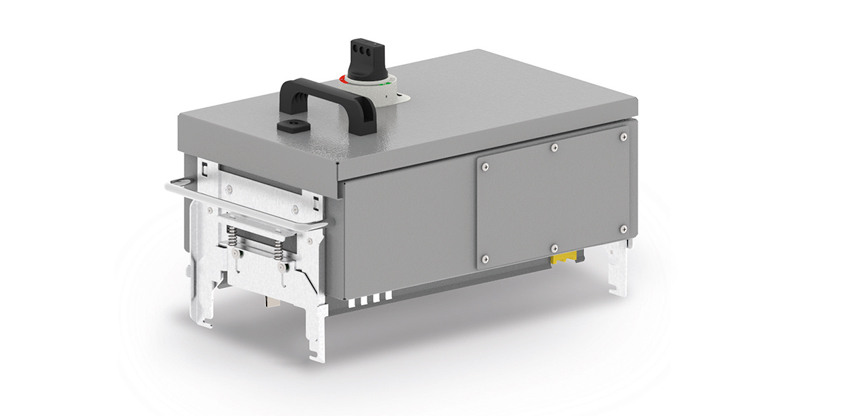

The product is Xtra-compact, efficient, and easy to install with features and accessories that make planning and designing your critical infrastructure project easy. With both Standard (XCP-S) and High-Performance (XCP-HP) series, a current range of 630-6300 amps, copper or aluminum conductors, a full range of components and power connections, and tap-offs up to 1250 amps, the XCP product line can be configured for any project design, including multi-floor distribution.



Starline’s PSSL busbar layout software has the ability to work with BIM models and AutoCAD.

Starline new XCP High Power Busbars

Starline new XCP High Power Busbars

Starline new XCP High Power Busbars

Starline new XCP High Power Busbars

Starline new XCP High Power Busbars

Starline new XCP High Power Busbars

Alexander Schneider is the sole distributor of Starline’s solutions in Israel.

For more info, contact our team at 972-9-8924444, email us info@schneider.co.il  or drop us a line.
