• Worldwide approvals and certification of safety standards
• No development costs, fast time-to-market
• Smart batteries with numerous features according to the SMBus specification
• Integrated LED State of Charge (SoC) indicator
• State-of-the-art lithium-ion cells with the market’s highest energy density
• High discharge performance
• JEITA charging profile optimization
• Numerous and redundant safety features
• Increased ESD protection up to 8.00kV
• Up to 80% of initial capacity after 800 cycles

Manufacturers from various markets have begun transitioning to 24V systems for new developments. We are seeing this change in medical technology, and in particular with ventilators, which are switching to 24V motors or blowers. Many other motorized medical applications, such as patient lifting devices or movement aids, are following this trend. The demand for 24V systems has also increased significantly in the field of robotics because these solutions are best suited for numerous applications such as telepresence robots, buddy/companion robots or autonomous mobile robots (AMR) used in warehouses.

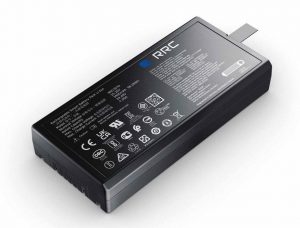

In order to optimally meet the market requirements, RRC power solutions has developed the ideal standard battery: the RRC3570.

The RRC3570 manages a balancing act between two worlds: It provides maximum performance and high capacity, but still remains below the 100Wh limit (for ease in transportation). In addition, the 24V standard battery is designed to be as small and lightweight as possible, but also very robust.

The new RRC PowerPaq is configured in 7s1p and contains high-power cylindrical cells in 21700 format. With a nominal voltage of 25.2V, the RRC3570 is optimally adapted to 24V systems, offers ample capacity with 4Ah and is also suitable for very high-performance applications with a peak discharge current of up to 30A.

The new RRC3570 has worldwide approvals: CE / UL2054 / UL1642 / IEC 62133 / EN60950 / UN3.8.3 / PSE /RCM.

For more info click here or contact our team at 972-9-8924444 info@schneider.co.il

RRC, the worldwide leading company for power supplies, batteries and battery charging technology, is represented in Israel by Alexander Schneider.
