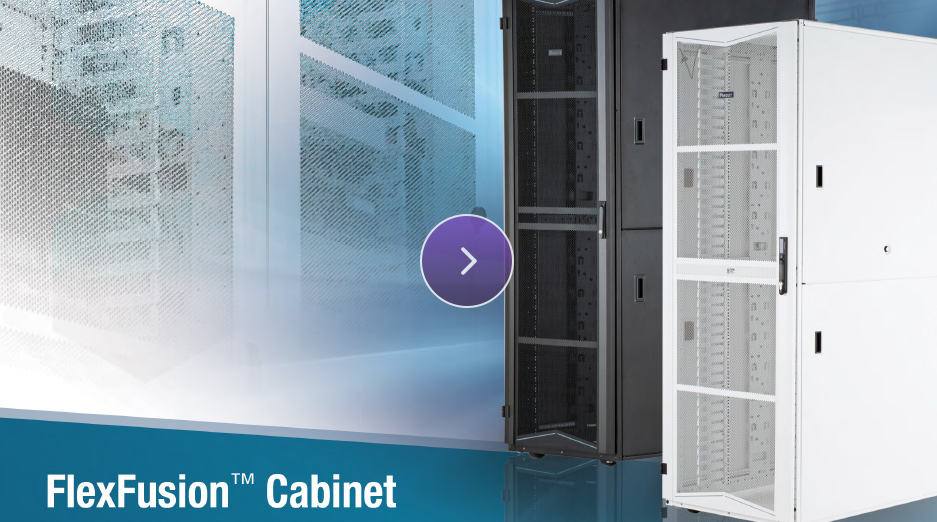

Panduit’s FlexFusion cabinets offer a unique universal platform for all types of data centers and servicing needs including Hyperscale, Edge and Multi-Tenant Data Center.

Built with best-in-class weight load of 3,500 lbs. and doors with maximum air flow of 80%, our new cabinet design can tackle your most challenging cabinet installations. Whether it’s for server, network or hybrid applications, FlexFusion Cabinets deliver performance to keep your networks running at optimal efficiency.

FlexFusion cabinet features:

• Performance – Best-in-class static load frame rating of 3,500 lbs. and 2,500 lbs. rolling load.
• Maximum Cooling – 80% open perforated doors assure maximum airflow through the cabinet for high thermal applications.
• Rapid Deployment – easy to adjust equipment rails, tool-less vertical cable manager panel and tool-less top cap rear entry.
• Scalability – customer configure-to-order platform to create a complete integrated solution.
• Bonding – cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network.
• Versatility – cabinet is available in a wide range of sizes and options for hot aisle/cold aisle or thermal containment deployment.

Technical information:

• Available cabinet sizes:
  • Height: 42, 45, 48, or 51 RU
  • Width (mm): 600, 700, or 800
  • Depth (mm): 1070 or 1200
• Material: Steel with durable Black or White polyester epoxy powder coat finish
• Compliance: EIA-310-E, TIA/EIA-942, UL2416

For more info click here or contact our team at 972-9-8924444, email us info@schneider.co.il  or drop us a line.

Alexander Schneider is the sole distributor of Panduit’s solutions in Israel.

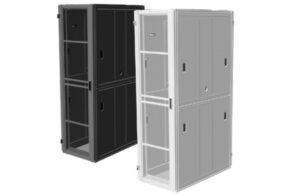

Featuring the FlexFusion™ XGL Series:

FlexFusion™ XGL Cabinets are the preferred choice for applications that require maximum flexibility in data centers and communication rooms. Select from the 16 models that are equipped with the essential options that provide a simple cost-effective cabinet solution.

Panduit’s Cabinets include front single hinge doors and split hinged rear doors with 80% open perforation, horizontally split locking side panels, 1 set of PDU mounting bracket and casters. Fully adjustable front and rear cage nut equipment rails. The 800mm wide cabinet comes with provisions for front or rear cable management fingers and brackets that are available as an accessory. The 800mm wide cabinet includes (4) 19″ 1 RU covered openings for pass through. The top of the cabinet includes brush cable entry points to prevent air leakage. The entire cabinet shall be electrically bonded without the use of bonding wires. The Cabinet has a 1588 kg (3500 lbs.) static load rating.
