Large UPS for MTDC and Hyperscale Data Centers
Scalable Power Infrastructure for High-Density Environments
Large data centers, multi-tenant data centers (MTDC), and hyperscale facilities require high-capacity UPS systems that deliver efficiency, reliability, and scalability. These UPS solutions provide robust power protection to support vast IT loads and mission-critical operations.
Why Choose Large UPS for Hyperscale & MTDC?
- High Power Density – Supports massive IT workloads efficiently
- Grid Compatibility – Optimized for high-voltage power infrastructure
- Energy Efficiency – Minimize operational costs with advanced power-saving technologies
- Advanced Monitoring & Management – Intelligent analytics for predictive maintenance and reliability
Featured Products:

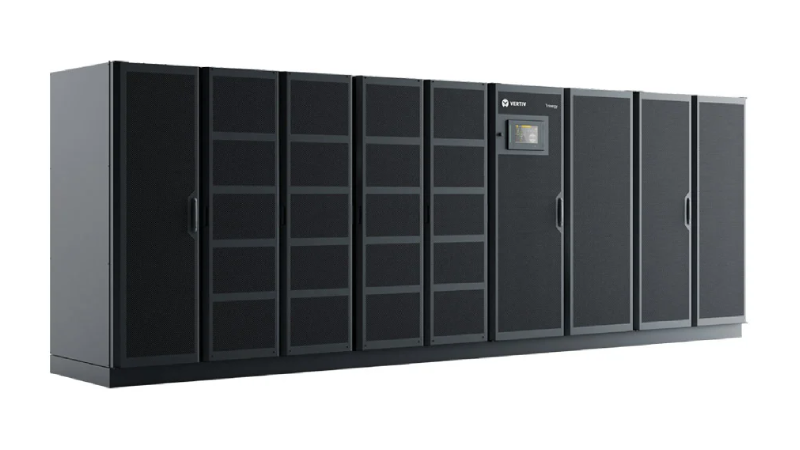

The Vertiv™ Liebert® Trinergy™ Cube is a high-capacity, modular uninterruptible power supply (UPS) system designed to provide exceptional efficiency, scalability, and reliability for large-scale data centers and mission-critical applications. Its advanced features make it particularly suitable for environments with rapid load changes, such as those involving artificial intelligence (AI) and high-performance computing (HPC).
Key Features:
- Modular Architecture: The Trinergy Cube’s modular design allows for hot-scalable power cores, enabling capacity expansion as business demands grow. This flexibility supports power ratings from 400 kW up to 1.6 MW per unit, with the ability to parallel multiple units for even greater capacity.
- High Efficiency: Achieving up to 99% efficiency in Dynamic Online mode, the Trinergy Cube significantly reduces energy consumption and operational costs while maintaining continuous power availability.
- Enhanced Reliability: Designed to endure extreme electrical challenges, the system ensures continuous power quality and availability. Features such as hot-modular power cores, distributed batteries, circular redundancy, and redundant fans contribute to its high system availability.
- Scalability: The compact 400 kW power core design allows the Trinergy Cube to scale up to 1.6 MW as power demands increase, providing a scalable solution that grows with your business needs.
- Flexible Configurations: The system’s architecture and connection types offer unprecedented installation flexibility, allowing configurations in a variety of layouts to optimize space and infrastructure requirements.
Specifications:
- Capacity: Supports power ratings from 400 kW to 1.6 MW per unit, with the ability to parallel multiple units for higher capacity requirements.
- Efficiency: Offers up to 99% efficiency in Dynamic Online mode, reducing energy consumption and operational costs.
- Input Voltage: Nominal input voltage of 480V, 3-phase, 3-wire.
- Output Voltage Regulation: Maintains output voltage regulation within ±1% under static conditions.
- Operating Frequency: Compatible with both 50Hz and 60Hz systems.

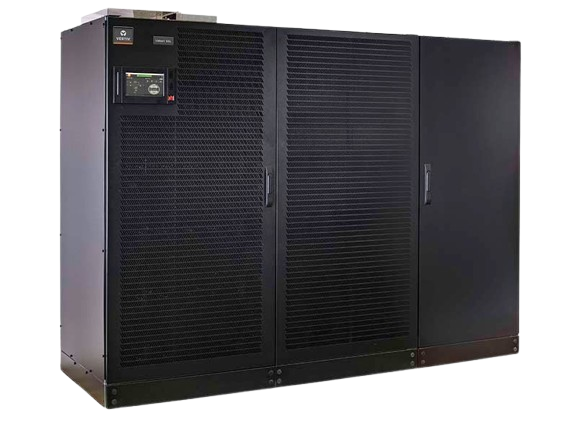

The Liebert® EXL S1™ is a monolithic, transformer-free UPS designed to deliver exceptional efficiency and power density for large-scale data centers. Its compact footprint and advanced features make it an ideal choice for facilities seeking reliable and scalable power protection.
Key Features:
- High Efficiency: Achieves up to 97% efficiency in double-conversion mode and up to 99% in Dynamic Online mode, significantly reducing energy consumption and operational costs.
- Compact Design: Offers one of the smallest footprints in its kVA class, allowing for optimal utilization of data center space.
- Scalability: Supports capacities ranging from 250 kVA to 1200 kVA, with the ability to parallel up to eight units for increased capacity or redundancy.
- Advanced Touchscreen Interface: Features a user-friendly touchscreen control panel for intuitive operation and monitoring.
- Lithium-Ion Battery Compatibility: Fully compatible with lithium-ion battery solutions, offering enhanced performance and longer battery life.
Specifications:
- Capacity: Available in 250, 300, 400, 500, 600, 625, 750, 800, 1000, 1100, and 1200 kVA ratings.
- Form Factor: Monolithic design suitable for large data center environments.
- Operating Modes: Supports Double Conversion, Dynamic Online, and ECO Mode for flexible operation.

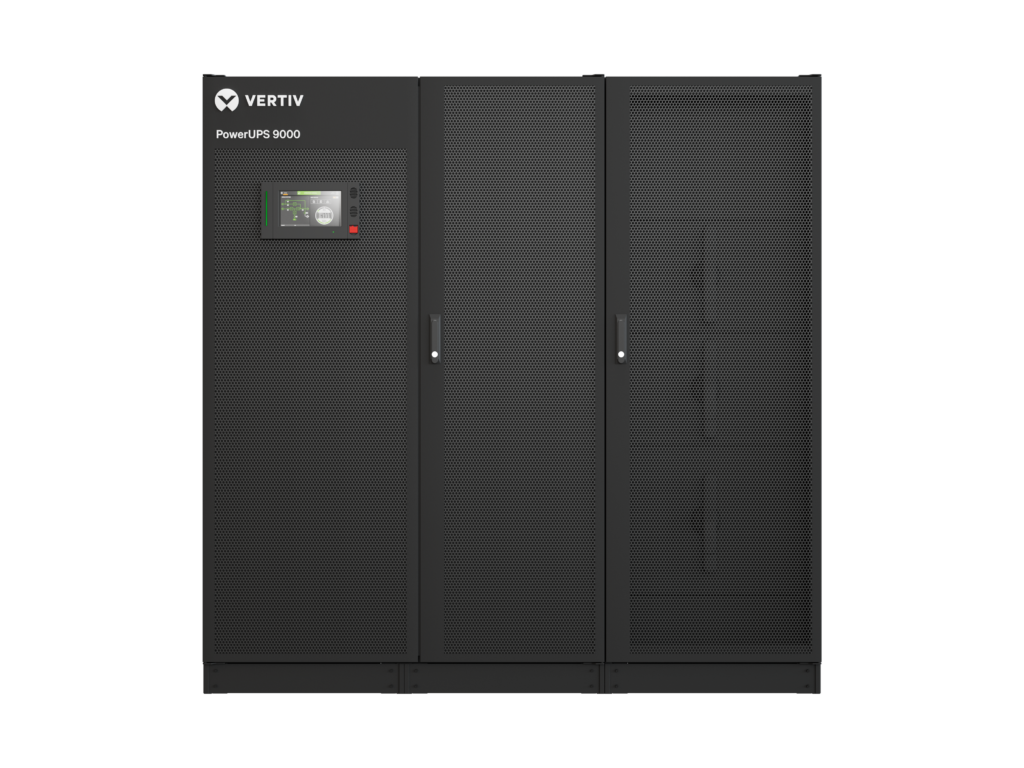

The Vertiv™ PowerUPS 9000™ is a high-power density, modular UPS designed to provide reliable and efficient power protection for both small enterprises and large data centers. Its compact design and advanced features make it suitable for space-constrained environments.
Key Features:
- High Efficiency: Achieves up to 97.5% efficiency in double-conversion mode and up to 99% with dynamic online mode, reducing energy consumption.
- Compact Footprint: Designed to be exceptionally compact, making it an ideal solution for space-constrained environments.
- Global Availability: Compliant with both CE and UL standards, it is designed, tested, and available worldwide.
- Reliability & Resilience: Designed to provide continuous power quality and availability, meeting contemporary resilience benchmarks.
Specifications:
- Capacity: Supports up to 1250 kW
- Form Factor: Modular design suitable for integration into existing data center infrastructure.
- Efficiency: Up to 97.6% efficiency

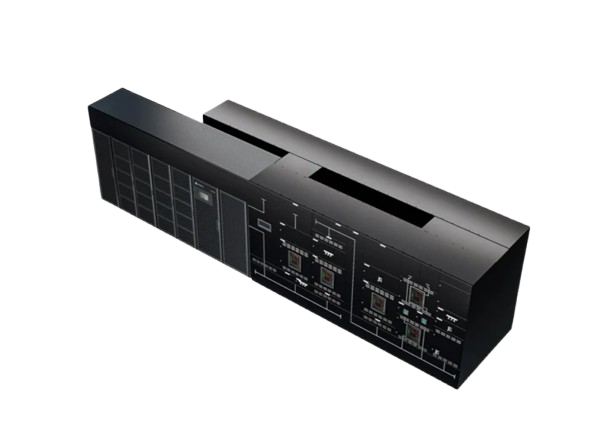

The Vertiv™ PowerNexus™ is an integrated power system that combines the robust capabilities of the Vertiv™ Trinergy™ UPS and switchboard into a single, close-coupled solution. This design reduces equipment footprint, cabling materials, and installation labor costs, expediting IT deployment for hyperscale and colocation data centers.
Key Features:
- Space Efficiency: Reduces gray space footprint by up to 15%, converting infrastructure space into revenue-generating white space for IT equipment.
- Accelerated Deployment: Cuts installation time by up to 60% compared to traditional builds through factory-integrated design and simplified deployment.
- Cost Reduction: Decreases installation costs by up to 20% through reduced labor, materials, and installation complexity.
- Simplified Power Infrastructure: Eliminates complex electrical work with factory-integrated connections and centralized monitoring.
Specifications:
- Integration: Combines Vertiv™ Trinergy™ UPS and switchboard into a single solution.
- Application: Ideal for hyperscale and colocation data centers deploying power modules and power skids
